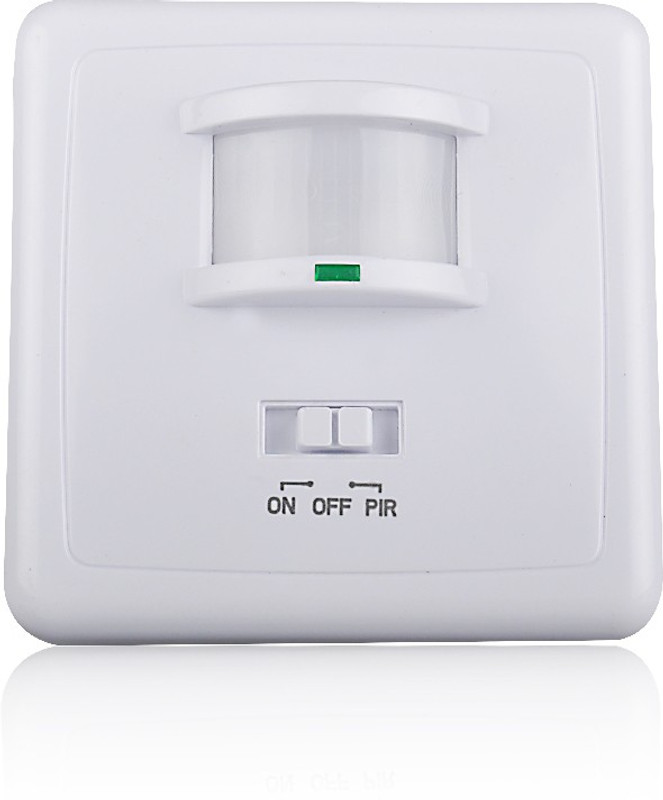

3D Innovations Pir Occupancy Sensor with Adjustable TIMER Delay & Lux control Wired Sensor Security System

Description

Fuctions Can identify day and night: The consumer can adjust work ambient light. It can work in the daytimeand at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer tothe testing pattern.Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.Time-Delay is adjustable. It can be set according to the consumer’s desire. The minimum time is 10sec3sec. The maximum is 7min2min. The switch: “ON”,”OFF”,”PIR”.Installation 1.Shut off the power.2.Loosen the connection column on the bottom of sensor, plug the wire into connection hole, tighten the screws; unload the surface of sensor, connect the sensor into connection box.3.If you want to install it in quadrate connection box, penetrate the setscrew into installation hole, aim at the installation hole on connection box, then tighten the screw; if you want to install it in circular one, you can use the same way as the quadrate, also adjust the sensor’s position, tighten the setscrew on surface, then the fixing arm will open automatically, fastenthe connection box .4.Switch on the power then test it.
