AdonElectronics Water Level Controller With 2-Float Sensors & Alarm Features for Monoblock,1-Ph Wired Sensor Security System

Description

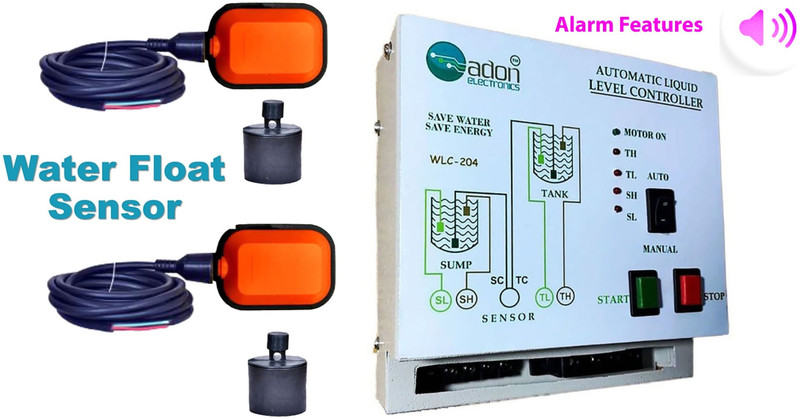

Adon Electronics Single Phase Fully Automatic Water Level Controller With 2-Float Sensor & Inbuilt Buzzer Features for Monoblock Pump Motor Load upto 3HP (Single Tank Control)|| WORKING ||Fully automatic water level controller is used to switch on and off the motor according to level of water in overhead tank.With Inbuilt alarm features, user can activate & de-activate the alarm as per their requirement of use.-It has 3 Mode of Operation, Auto, Manual and Semi-Auto.-In Auto Mode: Auto ON occurs when the tank water level is low and Auto OFF when tank is full.-In Manual Mode: This mode is used to operate motor manually by START & STOP button.-In Semi Mode: In this mode the motor start by the Start button and turned it off automatically.-Has LED indications for Motor-On, also has one level indication to know the level of water in the tank. When the tank is full, both the upper Red LEDs Glow together and turn two off when the tank is empty and stay off till tank full. And lower all two Red LEDs glow permanently to assure the performance healthy.|| FEATURES || 1. Inbuilt Alarm (Buzzer) Features, user controllable activation/de-activation facility.2. As this Float sensor is completely waterproof and IP 68 Protected, therefore NO current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition.3. No man power required to operate as fully automatic.4. Avoid overflow & dry running longer life no mechanical system.5. Compact Steel (with powder coated) housing.6. Control overhead Single tank.7. Easy to install. Advanced embedded technology.|| SPECIFICATIONS || 1.Operating voltage 220-250 volts ac. Frequency 50 hz.2. Controller Unit 25 Amp Load Capacity & up to 3 Hp Motor3. Suitable for Monoblock motor pump operated by a normal on/off switch / MCB/ electronic starter.|| PACKAGE CONTAINS|| 1. Controller Unit: Fully automatic water level controller with alarm features for Overhead Tank Only.2. Sensor: Two (2) IP-68 Graded Waterproof Float Sensors.3. Installation Boucher/Warranty Card.Warranty: 1-Year warranty. Warranty type: Replace/Service.|| Thanks for to have healthy buying response ||
