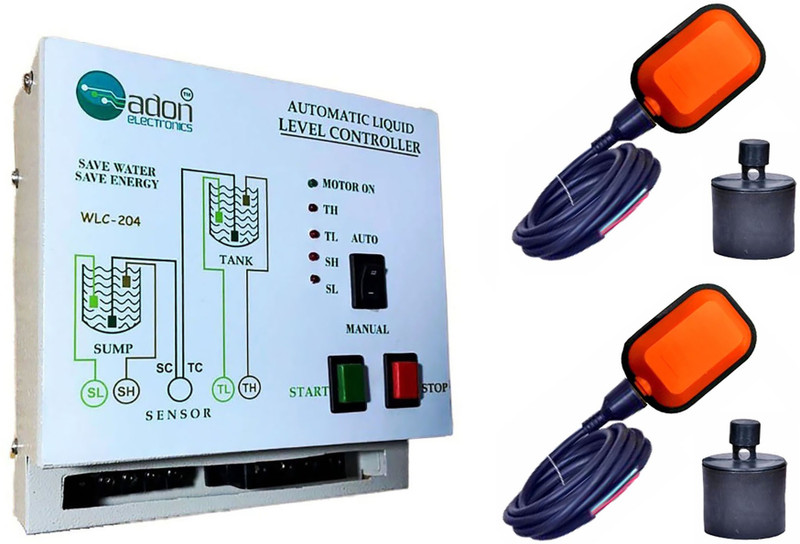

AdonElectronics Water Level Controller with 2 Float Sensors for Up & Down Tank(Monoblock,1Phase) Wired Sensor Security System

Description

Adon Electronics Single Phase Fully Automatic Water Level Controller with Float Sensor for Monoblock Pump Motor Load upto 3HP (Double Tank Control)|| WORKING ||It is Fully automatic water level controller is used to switch on and off the motor according to level of water in overhead and underground both tanks.-It has 2 Mode of Operation, Auto and Manual Mode.-In Auto Mode: Auto ON occurs when the upper tank water level is low and Auto OFF when tank is full by confirming the lower tanks water level. Always detect lower tanks water level, if confirmed only then start and stop process initiate if required for the overhead tank. -In Manual Mode: This mode is used to operate motor manually by START & STOP button.-Has LED indications for Motor-On, also has level indication to know the level of water in the tank. When the overhead tank is full, both the upper Red LEDs Glow together and turn two off when the tank is empty and stay off till tank full. And lower two Red LEDs glow together according to the level of water in the underground tank. |||| FEATURES ||1. As this Float sensors are completely waterproof and IP 68 Protected; therefore, NO current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition.2. No man power required to operate as fully automatic.3. Avoid overflow & dry running longer life no mechanical system.4. Compact Steel (with powder coated) housing.5. Control overhead and underground both tanks.6. Easy to install. Advanced embedded technology.|| SPECIFICATIONS ||1.Operating voltage 220-250 volts ac. Frequency 50 hz.2. Controller Unit 25 Amp Load Capacity & Upto 3 Hp Motor3. Suitable for Monoblock motor pump operated by a normal on/off switch / mcb/ electronic starter.|| PACKAGE CONTAINS ||1. Controller Unit: Fully automatic water level controller with indicator for Overhead & Underground Tank.2. Sensor: Two (2) IP68 Graded High quality Float Sensors.3. Installation Boucher/Warranty Card.Warranty: 1 Year Warranty. Warranty Type: Repair/Replace|| Thanks for to have healthy buying response ||
