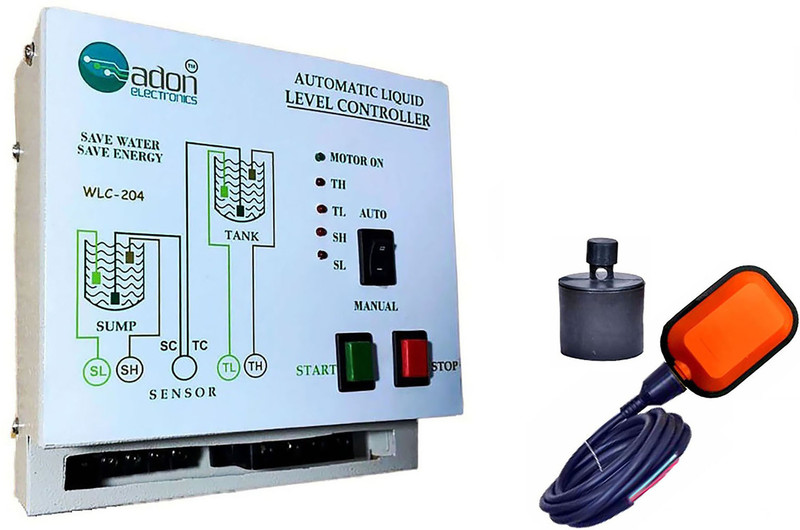

AdonElectronics Water Level Controller with Float & Alarm for Submersible START/STOP Button Type Wired Sensor Security System

Description

Adon Electronics Single Phase Fully Automatic Water Level Controller for Submersible Pump Motor With Alarm – (Start and Stop Button Type Starter Panel with Single/Multi Capacitors Panel) – Load Up to 3hp – (Overhead Tank Control):: WORKING ::This Fully automatic water level controller is used to control Submersible Pump-Motor (having START (GREEN) and STOP (RED) Button Type Starter Panel with Single/Multi Capacitors Panel) to switch on and off the motor according to level of water in overhead tank with the help of one (1) IP68 Protected FLOAT Sensor. With inbuilt alarm features, user can activate & de-activate the alarm as per their requirement of use.-It has 2 Mode of Operation, Auto and Manual Mode.-In Auto Mode: Auto ON occurs when the tank water level is low and Auto OFF when tank is full.-In Manual Mode: This mode is used to operate motor manually by START & STOP button.-Has LED indications for Motor-On, also has one level indication to know the level of water in the tank. When the tank is full, both the upper Red LEDs Glow together and turn all two off when the tank is empty and stay off till tank full. And lower all two Red LEDs glow permanently to assure the performance healthy.:: FEATURES ::1. Inbuilt Alarm features which can also be de-activated by user at any time & as required.2. As this Float sensor is completely waterproof and IP 68 Protected, therefore NO current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition.3. No man power required to operate as fully automatic.4. Avoid overflow & dry running longer life no mechanical system.5. Compact Steel (with powder coated) housing.6. Control overhead tank.7. Easy to install. Advanced embedded technology.:: SPECIFICATIONS ::1.Operating voltage 220-250 volts ac. Frequency 50 hz.2. Controller Unit 25 Amp Load Capacity & Up to 3 Hp Motor.3. Suitable For Submersible Pump-Motor (having START (GREEN) and STOP (RED) Button Type Starter Panel with Single/Multi Capacitors Panel):: PACKAGE CONTAINS ::1. Controller Unit: Fully automatic water level controller with indicator for Submersible Pump with Alarm Features for Overhead Tank Only.2. Sensor: One IP-68 Graded Waterproof Float Sensor.|| Thanks for to have healthy buying response ||
