Description

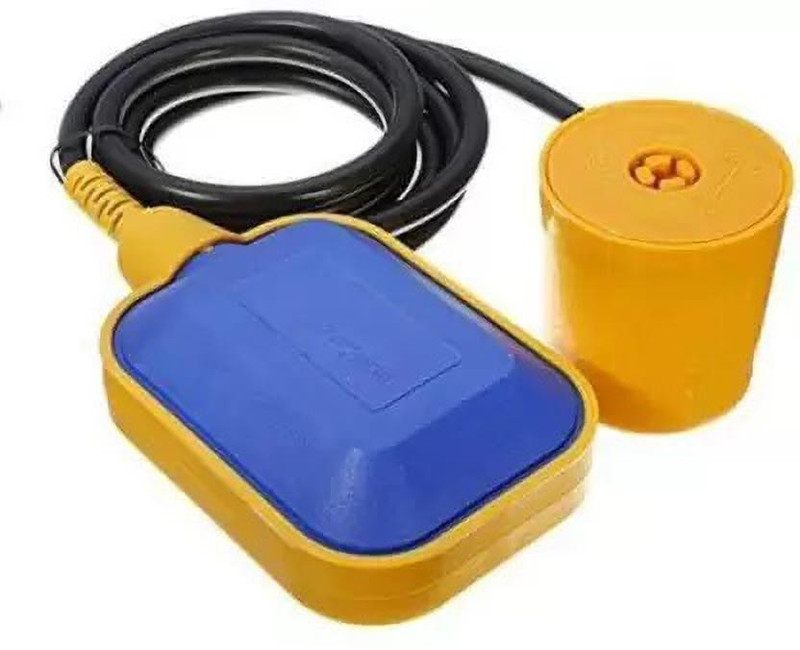

This float switch can be used for both emptying and filling operations. Directly Controls pumps up to 1/2 HP at 120 Volts or 220 Volts. Up to 12 Amperes continuous or 13.3 Non continuous AC Amperage. Environmental friendly (Mercury Free). Suitable for use in septic, sump, and potable water applications. Includes adjustable counterweight. Constructed with non-toxic polypropylene. Float Level Switch Sensor is used as the level controlling device for the water tank, used as a dry run protection for submersible pump set. The Water Switch is a double chamber design float-type, liquid level switch that uses a micro-type switch for the switching operation. The case and cable are hermetically sealed via re-injection molding (NOT BY GLUEING). The latching ball design provides excellent resistance to nuisance trips due to fluid turbulence. The Water Switch can be used safely in drinking water or any other fluids that are compatible with the body and cable materials as listed below. The Water Switch is supplied SPDT for either PUMP UP or PUMP DOWN applications. The differential (inches pumped) can range from as little as 6 inches to 4 feet, depending upon tether length (cable length from tether point to switch end). Features: Simple construction, reliable performance of Float Switch/Water Level Regulator/ Liquid Switch. Sturdy and durable, need not maintain of Float Switch/Water Level Regulator/ Liquid Switch. Easy installation method, convenient adjustment method. Wide application scope, strong generality. Simple circuit economical and practical. Specifications: Product Name: Float Switch Fluid Level Controller Rated Current/Voltage: AC 10(8) A250V~10(4) A380V Working Temperature: 0C+80C Control Range: >0.2m Electrical Endurance: 50,000 times Contacts: NO+NC Body Size: 10 x 7.6 x 4.6cm (L*W*T) Cylinder Size: 6.3 x 4.8cm (H*D) Cable Length: 1.9m / 6feet Housing Material: Plastic Color: Blue, Yellow, Black Weight: 500gram Approx?
