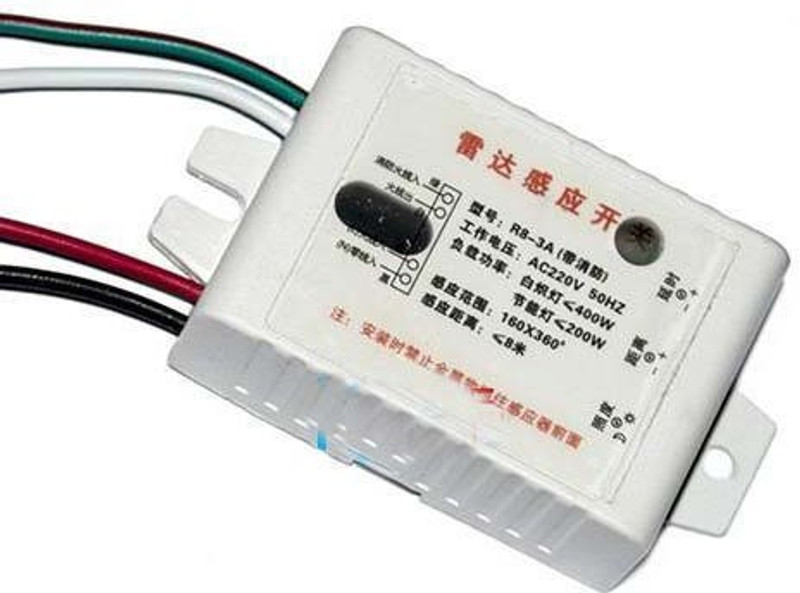

NP Plastics 220~240 Microwave Radar Active Motion better than PIR Wired Sensor Security System

Description

Functions and features: Intelligent Sensor: When someone enters the detection range of the product, it automatically turns ON the light. When people leave the detection range, the lights automatically turn off. It can automatically Identify day and night. Smart Delay: switch detects the human body activity and will automatically extends day cycle. Comparison with infrared products: Radar switch sensing distance farther, wide angle, no dead zone, can penetrate the glass, and thin wood. Use: hallway, corridor, basement, garage, storage, monitoring, majorly in huge or open area, and other energy-saving automatic lighting (not good to install in bathroom or bedroom). MW motion sensors are proven best device for replacement of PIR sensors if we are installing them outdoor. These sensors do not have any effect of sunlight or other heat sources.Technical parameters: Input Voltage : 220V AC Power Frequency:50/60 Hz Time-delay:10sec Rated Load:200W (energy-saving lamp), others 400W Detection Distance: 5-8M Ambient Light:6LUX Detection Range:180 but works at 360 as MW property. Working Temperature:-20~+40C Installation Height;1.5m~3.5m Power Consumption:0.9W Detection Motion speed:0.6~1.5m/s Note: We are not sending any hard copy of circuit diagram. Please refer last image for same.Green wire can be used for No Connection. It is just to directly connect load to power supply to bypass the Microwave motion sensor.Package Include:1 x microwave motion sensor
